Database mirroring connection error 4 'An error occurred while receiving data: '10054(An existing connection was forcibly closed by the remote host.)

Database mirroring connection error 4 'An error occurred while receiving data: '10054(An existing connection was forcibly closed by the remote host.)

Recently while working on DR test, I have come across unknown issue. I could not find much help from google on this. This is regarding database mirroring and this should stand same for AlwaysON up to some extent as they both use Endpoints to communicate and service accounts for encrypting data over endpoints.

Problem description:

Part of the DR exercise we have disabled Mirroring on MSSQ 2014 databases and brought DR DB’s online. Post DR exercise when we try to re-establish mirroring we have started getting below error:

Primary logs:

2018-03-20 22:50:40.120 spid40s      Database mirroring connection error 4 'An error occurred while receiving data: '10054(An existing connection was forcibly closed by the remote host.)'.' for 'TCP://XX.XX.XX.XX:7077'.

2018-03-20 22:50:55.780 spid22s      Error: 1443, Severity: 16, State: 2.

As part of general trouble shooting I have stopped and started Endpoints on both servers no luck. Tried telnet from both servers everything was fine and no issues found.

Then tried researching error logs as they say for any issues a good troubleshooting will always start from SQL Server error logs. But in this case, we must check SQL Server error logs from both Primary and DR servers, as the issue is related to mirroring and we could not find any useful information from Primary.

When checked Mirror or DR server error logs surprisingly handshake errors were logged. This helped to find root cause the fix the issue.

Mirror logs:

2018-03-20 22:54:15.160 Logon        Database Mirroring login attempt failed with error: 'Connection handshake failed. An OS call failed: (80090311) 0x80090311(No authority could be contacted for authentication.). State 67.'.  [CLIENT: xx.xx.xx.x]

2018-03-20 22:54:20.200 Logon        Database Mirroring login attempt failed with error: 'Connection handshake failed. An OS call failed: (80090311) 0x80090311(No authority could be contacted for authentication.). State 67.'.  [CLIENT: xx.xx.xx.x]

2018-03-20 23:06:55.010 Logon        Error: 17806, Severity: 20, State: 14.

2018-03-20 23:06:55.010 Logon        SSPI handshake failed with error code 0x8009030c, state 14 while establishing a connection with integrated security; the connection has been closed. Reason: AcceptSecurityContext failed. The Windows error code indicates the cause of failure. The logon atte

2018-03-20 23:06:55.010 Logon        Error: 18452, Severity: 14, State: 1.

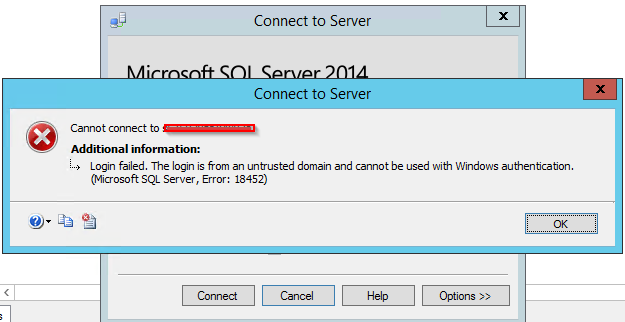

2018-03-20 23:06:55.010 Logon        Login failed. The login is from an untrusted domain and cannot be used with Windows authentication. [CLIENT: xx.xx.xx.x]

Then logged to both servers using service accounts to make sure Service account is working fine. From Primary server both DB instances were accessible from DR server Primary instance was not accessible.

This gave a hint of confidence that I am on right path and helped to fix the issue.

Possible solutions are:

1.       If the service account password is changed make sure to update on both SQL Servers and restart the Services this should solve if issue is related to service account password.

2.       Sometimes this might not resolve the issue. If your hosted on complex domains like what happened in this case. Servers were hosted on different domain and service accounts used were from different domain. To fix this we have make sure proper trust is established between these two domains so that authenticity of the service account can be validated. This will be taken care by AD admins. This helped resolve the issue.

Hope this helps someone like me 😊.
